Why is sharp-edges shield normally used in pipe jacking with manual excavation?

Posted in Tunneling | Email This Post Email This Post |
Print Friendly, PDF & Email

The shield connected to lead pipe is normally sharp-edged in design because:

(i) It helps to reduce the resistance when the shield enters into soils;

(ii) It reduces the amount of soil dropping into the shield.

Advertisements

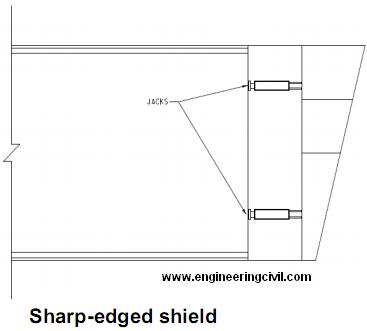

Sometimes the shield is equipped with jacks so that it allows tilting of the shield and adjustment could be made to the direction of pipe jacking.

sharp-edge-shield

This question is taken from book named – A Self Learning Manual – Mastering Different Fields of Civil Engineering Works (VC-Q-A-Method) by Vincent T. H. CHU.
