Design Procedure of Cantilever Wall Design In Clay

Posted in Piles Engineering | Email This Post Email This Post |
Print Friendly, PDF & Email

We at engineeringcivil.com along with Er. Sadaf Noor are providing you step by step procedure to design a cantilever wall in clay.

This design procedure covers all the required details you need to design a cantilever wall in clay. More over its made easy due to its systematic presentation by Er. Sadaf Noor.

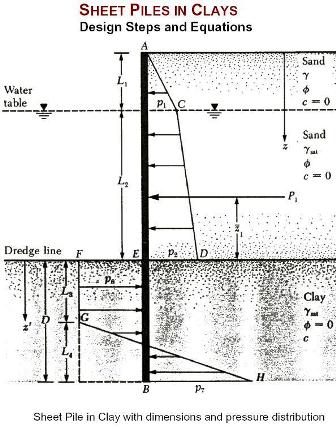

cantilever-wall-designs-in-clay-1

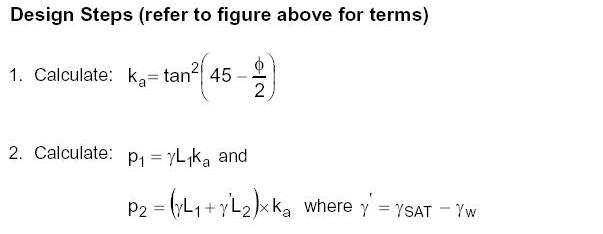

cantilever-wall-design-in-clay-3

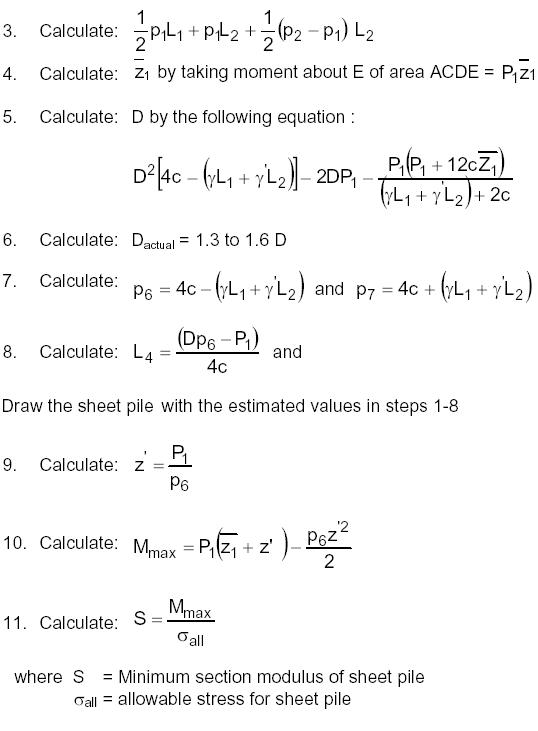

cantilever-wall-design-in-clay-2

We are thankful to a engineer Sadaf Noor Ahmed for this valuable contribution and hope to see more such valuable contributions from her.
