Design Procedure of Sheet Piles In Sand

Design Procedure of Sheet Piles In Sand

This is a procedure to design a sheet pile cantilever in sand and covers all the details you need to design them.

This very useful design procedure has been uploaded here with an aim to help civil engineers make the design process simpler. We are thankful to a engineer Sadaf Noor Ahmed for this valuable contribution and hope to see more such valuable information from her.

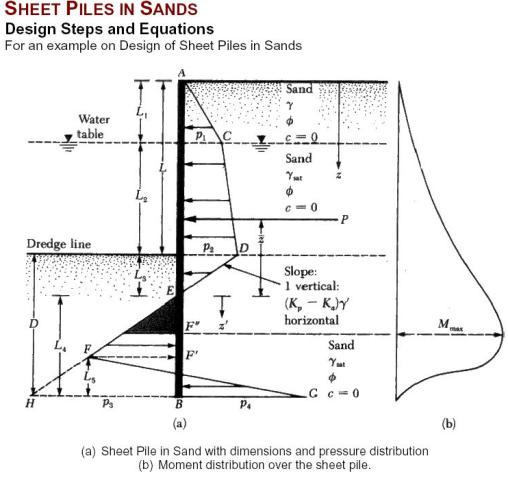

sheet-pile-cantilever-design-steps-sand-1

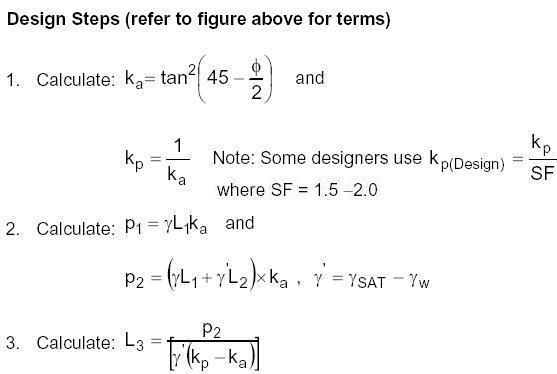

sheet-pile-cantilever-design-steps-sand-2

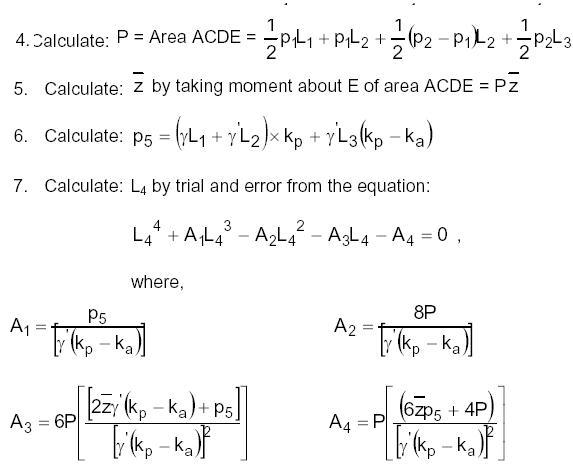

sheet-pile-cantilever-design-steps-sand-3

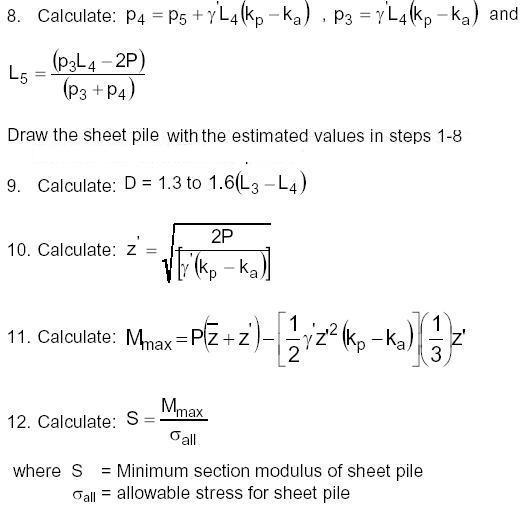

sheet-pile-cantilever-design-steps-sand-4

We are thankful to a engineer Sadaf Noor Ahmed for this valuable contribution and hope to see more such valuable informations from her.
