Venturimeter Flow Computations

posted in Hydraulics | Email This Post Email This Post

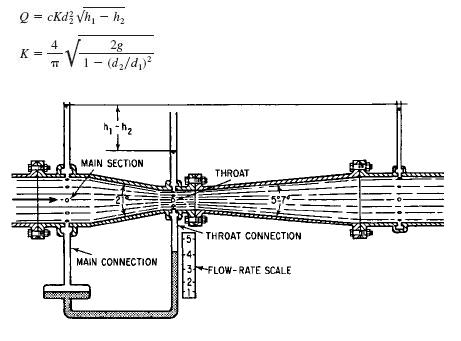

Flow through a venturimeter is given by

hydrualics 11

where
Q= flow rate, ft3/s (m3/s)

c =empirical discharge coefficient dependent on throat velocity and diameter

d1= diameter of main section, ft (m)

d2= diameter of throat, ft (m)

h1= pressure in main section, ft (m) of water

h2= pressure in throat section, ft (m) of water
