T Beam Design Tool Excel Sheet

T Beam Design Tool Excel Sheet

T Beam designing tool in Microsoft excel using macros developed by Shankar Tayal a 3rd year student of school of infrastructure, Indian Institute of Technology,Bhubaneswar.

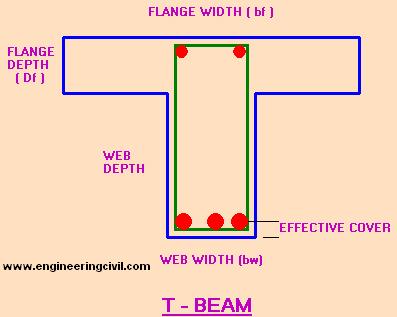

T_beam_cross_section

INPUTS:
Depth of the web
Depth of the flange
Design Moment
Grade of concrete ( M15 or M20 )
grade of steel ( Fe 250 or Fe 415 or Fe 500)
Flange Width

OUTPUTS:
Width of the web
Reinforcement Details

This tool is designed for both single as well as double reinforcement design.

Advertisements

In single reinforcement design steel is provided only on the tension side. But in case of double reinforcement design steel is provided on tension as well ascompression side which becomes more economic then single reinforcement design.

Download T Beam Design Tool Excel Sheet
