Cement And Water Saving With Water Reducers
Posted in Mix Design, Research Papers  Email This Post By
Er. Kaushal Kishore ,
Materials Engineer, Roorkee
In India 0.93 kg of CO_{2} is emitted in the production of one kg of cement. In the financial year 200910 India produces 200 million tonnes of cement. In the production of this cement 186 million tonnes of CO_{2} was emitted in the atmosphere during financial year of 200910.
The availability of water in India per person per year in 1950 was 5177 cu.m. In the year 2009 it is reduces to 1700 cu.m.
If 50 million tonnes cement in making concrete uses water reducers 7500000 tonnes of cement can be saved. 3750000 kl of potable water will be saved and the saving of Rs. 3300 crores per year to construction industry. This amount is worked out after adjusting the cost of water reducers. Less cement used means less cement required to be produce by the cement factories resulting 6975000 tonnes of CO_{2} will be prevented to be emitted to the atmosphere. These are worked out with an average saving of 15% cement and 15% water.
CO_{2} emission is word problem, but for India in addition to CO2 it has problems of Air, Water, Soil, Food and Noise pollutions. Less densily populated countries may cope with these problems but for India it is of the top concern. The population figures of 2009 is, India 350 person per sq.km, China 132 person per sq.km and USA only 34 person per sq.km. The figures of 2006 CO¬2 emissions are USA 658.60 tonnes per sq.km, China 611.76 tonnes per sq.km and India 459.35 tonnes per sq.km. Every one should contribute his or her efforts to save the environment from pollution. Those involve in the construction activities can contribute their share by proper design of concrete Mixes. This is best illustrated by the following examples.
MIX DESIGN DETAILS
1  Grad of Concrete  :  M30
2  Cement  :  Three mixes are to be designed
MIXA
With PPC (Flyash based) conforming to IS:1489partI1991. 7 days strength 38.5 N/mm^{2}. Specific Gravity : 3.00

MIXB
With OPC43 Grade conforming to IS: 81121989. 7 days strength 40.7 n/mm^{2}. Specific Gravity : 3.15

MIXC
With OPC of MixB and Fly ash conforming to IS:3812 (PartI)2003 Specific Gravity : 2.25

Note: Requirements of all the three mixes are the same. Fine Aggregate, Coarse Aggregate and normal Super plasticizer are the same for all the three mixes.
3  Fly ash replacement  :  30% Fly ash is required to be replaced with the total cementitious materials.
4  Maximum nominal size of aggregates  :  20 mm Crushed aggregate
5  Fine aggregate  :  River sand of ZoneII as per IS:3831970
6  Minimum cement content  :  320 kg/m^{3} including Fly ash
7  Maximum free W/C Ratio  :  0.45
8  Workability  :  50 mm slump
9  Exposure condition  :  Severe for RCC work
10  Method of placing  :  Site mixing
11  Degree of supervision  :  Good
12  Maximum of cement content (Fly ash not included)  :  450 kg/m^{3}
13  Chemical admixture  :  Super plasticizer conforming to IS:91031999. With the given requirements and materials, the manufacturer of Normal Super plasticizer recommends dosages of 17 gm per kg of OPC, which will reduce 24% of water without loss of workability. For fly ash included cement dosages will be required to be adjusted by experience/ trials.
TEST DATA FOR MATERIALS
1. The grading of fine aggregate, 10 & 20 mm aggregates are as given in Table. 1. Fine aggregate is of zoneII as per IS:3831970. 10 and 20 mm crushed aggregate grading are single sized as per IS: 3831970.
2. Properties of aggregates
Tests
Fine aggregate
10 mm aggregate
40 mm aggregate
Specific Gravity
2.65
2.65
2.65
Water Absorption%
0.8
0.5
0.5
3. Target strength for all A, B and C mixes
f_{ck} = f_{ck}+ 1.65 x S
30 + 1.65 x 5
= 38.3 N/mm^{2} at 28 days age

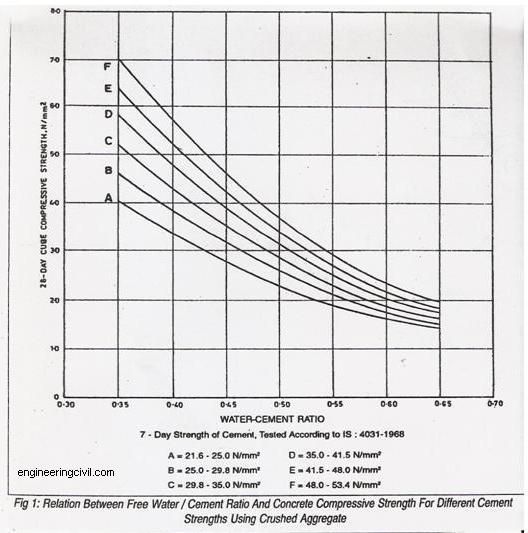

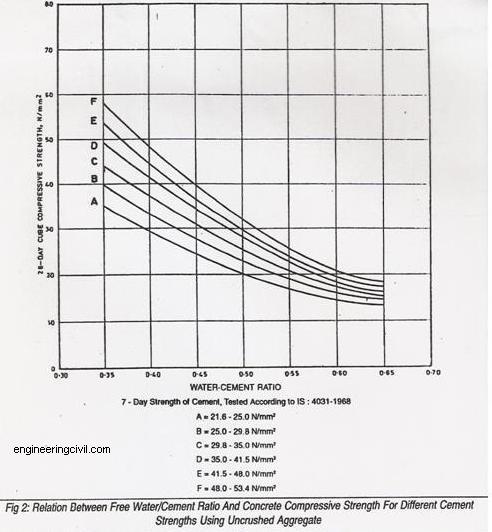

4. For Mix A and B free W/C ratio with crushed aggregate and required target strength of 38.3 N/mm^{2} at 28 days from Fig. 1 Curve D found to be 0.45. Taking into the consideration of water in admixture, let it be 0.44. This is lower than specified maximum W/C ratio value of 0.45.
Note:In absence of cement strength, but cement conforming to IS Codes, assume from Fig. 1 and Fig. 2.
Curve A and B for OPC 33 Grade
Curve C and D for OPC 43 Grade
Curve E and F for OPC 53 Grade
Take curves C and D for PPC, as PPC is being manufactured in minimum of 43 Grade of strength.
5. Other data’s: The Mixes are to be designed on the basis of saturated and surface dry aggregates. At the time of concreting, moisture content of site aggregates are to be determine. If it carries surface moisture this is to be deducted from the mixing water and if it is dry add in mixing water the quantity of water required for absorption. The weight of aggregates are also adjusted accordingly.
DESIGN OF MIXA WITH PPC
a) Free W/C ratio for the target strength of 38.3 N/mm2 as worked out is 0.44.
b) Free water for 50 mm slump from Table 2 for 20 mm maximum size of aggregate.
2/3*180+1/3*210= 190 kg/mm^{3}
From trials it is found that Normal Super plasticizer at a dosages of 20gm/kg of cement may reduce 24% water without loss of workabilityThen water = 190 – (190 x 0.24) = 144.4 kg/m^{3}
for trials say 145 kg/m^{3}
c) PPC = 145/0.44 = 329.5 kg/m^{3}
Say 330 kg/m^{3}. This is higher than minimum requirement of 320 kg/m^{3}
d) Formula for calculation of fresh concrete weight in kg/m^{3}
U_{M} = 10 x G_{a}(100 – A) + C_{M} (1 – G_{a} /G_{c} ) – W_{M} (G_{a} – 1)
Where,
U_{M} = Wight of fresh concrete kg/m^{3}
G_{a} = Weighted average specific gravity of combined fine and coarse aggregate bulk, SSD
G_{c} = Specific gravity of cement. Determine actual value, in absence assume 3.15 for OPC and 3.00 for PPC (Fly ash based)
A = Air content, percent. Assume entrapped air 1% for 40 mm maximum size of aggregate, 1.5% for 20 mm maximum size of aggregate and 2.5% for 10mm maximum size of aggregate. There are always entrapped air in concrete. Therefore ignoring entrapped air value as NIL will lead the calculation of
higher value of density.
W_{M} = Mixing water required in kg/m^{3}
C_{M} = Cement required, kg/m^{3}
Note: The exact density may be obtained by filling and fully compacting constant volume suitable metal container from the trial batches of calculated design mixes. The mix be altered with the actual obtained density of the mix.
U_{M} = 10 x G_{a} (100 – A) + C_{M} (1 – G_{a} /G_{c} ) – W_{M} (G_{a} – 1)
= 10 x 2.65 (100 – 1.5) + 330(1 2.65/3.00) – 145 (2.65 1)
2409.6 kg/m^{3}
Say 2410 kg/m^{3}
e) aggregates = 2410 – 330 – 145 = 1935 kg/m^{3}
f) Fine aggregate = From Table 3 for zoneII Fine aggregate and 20 mm maximum size of aggregate, W/C ratio = 0.44, 50 mm slump found to be 34%.
Fine aggregate = 1935 x 0.34 = 658 kg/m^{3}
Coarse aggregate = 1935 – 658 = 1277 kg/m^{3}
10 and 20 mm aggregate are single sized as per IS: 3831970. Let they be combined in the ratio of 1.2:1.8 to get 20 mm graded aggregate as per IS: 3831970
10 mm aggregate = 510 kg/m^{3}
20 mm aggregate = 767 kg/m^{3}
g) Thus for M30 Grade of concrete quantity of materials per cu.m. of concrete on the basis of saturated and surface dry aggregates:
Water = 145 kg/m^{3}
PPC = 330 kg/m^{3}
Fine Aggregate (sand) = 658 kg/m^{3}
10 mm Aggregate = 510 kg/m^{3}
20 mm Aggregate = 767 kg/m^{3}
Normal Super Plasticizer = 6.6 kg/m^{3}
MIX B WITH OPC
a) Water = 190 – (190 x 0.24) = 144.4 kg/m^{3}say 145 kg/m^{3}
b) OPC = 145/0.44 = say 330 kg/m^{3}
c) Density:
10 x 2.65 (100 – 1.5) + 330 (1 – 2.65/3.15) – 145 (2.65 – 1)
= 2423.5 kg/m^{3}say 2425 kg/m^{3}
d) Total Aggregates = 2425 – 145 – 330 = 1950 kg/m^{3}
Fine Aggregate = 1950 x 0.34 = say 663 kg/m^{3}
Coarse aggregate = 1950 – 663 = 1287 kg/m^{3}
10 mm Aggregate = 1287×1.2/3 = 515 kg/m^{3}
20 mm Aggregate = 1287×1.8/3 = 772 kg/m^{3}
e) Thus for M30 Grade of concrete quantity of materials per cu.m of concrete on the basis of SSD aggregates are given below:
Water = 145 kg/m^{3}
OPC = 330 kg/m^{3}
Fine Aggregate (sand) = 663 kg/m^{3}
10 mm Aggregate = 515 kg/m^{3}
20 mm Aggregate = 772 kg/m^{3}
Normal Super Plasticizer = 5.610 kg/m^{3}
MIX. C WITH OPC + FLYASH
With the given set of materials increase in cementitious materials = 12%
Total cementitious materials = 330 x 1.12 = 370 kg/m^{3}
Materials
Weight (kg/m^{3})
Volume (m^{3})
OPC = 370 x 0.70
259/3150
0.0822
Flyash = 370x 0.30
111/2250
0.0493
Free Water = 145 x 0.95
138/1000
0.138
Normal Super Plasticizer = 7.5kg
7.5/1150
0.0065
Air = 1.5%

0.015`
Total
0.291

Total Aggregates = 1 – 0.291

0.709

1.00

Coarse Aggregate
1287/2650
0.4857
Fine Aggregate = 0.709 – 0.4857 = 0.2233
= 0.2233 x 2650 = 592 kg
Note:
1. Specific gravity of Normal Superplasticizer = 1.15
2. Addition of Flyash reduces 5% of water demand.
M30 Grade of concrete quantity of material per cu.m of concrete on the basis of saturated and surface dry aggregates of Mix ‘A’, ‘B’ and ‘c’ are given below:
Materials
MIX. ‘A’ with PPC
Mix. ‘B’ with OPC
Mix. ‘C’ with OPC+Flyash
Water kg/m^{3}
145
145
138
PPC kg/m^{3}
330
—
—
OPC kg/m^{3}
—
330
259
Flyash kg/m^{3}
—
—
111
Fine Agg. kg/m^{3}
658
663
592
10mm Agg. kg/m^{3}
510
515
515
20 mm Agg. kg/m^{3}
767
772
772
Normal Super plasticizer kg/m^{3}
6.6
5.61
7.5
W/Cementations ratio
0.44
0.44
0.373
Note:
1. For exact W/C ratio the water in admixture should also be taken into account.
2. The W/C ratio of PPC and OPC is taken the same assuming that the strength properties of both are the same. If it is found that the PPC is giving the low strength then W/C ratio of PPC have to be reduce, which will increase the cement content. For getting early strength and in cold climate the W/C ratio of PPC shall also be required to be reduced.
3. PPC reduces 5% water demand. If this is found by trial then take reduce water for calculation.
4. If the trial mixes does not gives the required properties of the mix, it is then required to be altered accordingly. However, when the experiences grows with the particular set of materials and site conditions very few trials will be required, and a expert of such site very rarely will be required a 2nd trial.
CONCLUSION
1. For M30 Grade concrete having same material and requirement,
but without water reducer, the PPC and OPC required will be 190/0.45 = 422kg/m^{3}
2. With the use of superplasticizer the saving in cement is 92 kg/^{3}and water 45 lit/^{3}for PPC and OPC.
3. In the Fly ash concrete the saving in cement is 163 kg/m3 and water 52 lit/^{3}including utilization of 111 kg/^{3}of fly ash witch is a waste material.
4. If 50 million tonnes cement in making concrete uses Water Reducers 7500000 tonnes of cement can be saved. 3750000 KL of potable water will be saved and the saving of Rs. 3300 crores per year to the construction Industry. 6975000 tonnes of CO2 will be prevented to be emitted to the atmosphere. The benefits in the uses of water reducers not limited to this. When water reduces shrinkage and porosity of concrete are reduces which provides the durability to concrete structures.
6. India is facing serious air, water, soil, food and noise pollution problems. Every efforts therefore are necessary to prevent pollution on top priority basis.
REFERENCES:
1  IS : 3831970  Specifications for coarse and fine aggregates from natural sources for concrete (second revision) BIS, New Delhi
2  IS: 4562000  Code of practice for plain and reinforced concrete (fourth revision), BIS, New Delhi
3  IS: 91031999  Specification for admixtures for concrete (first revision) BIS, New Delhi
4  IS: 81121989  Specifications for 43 Grade ordinary portland cement (first revision) BIS, New Delhi
5  IS: 2386 (PartIII) 1963  method of test for aggregate for concrete. Specific gravity, density, voids, absorption and bulking, BIS, New Delhi
6  IS: 3812 (PartI) 2003  Specification for pulverized fuel ash: PartI for use as pozzolana in cement, cement mortar and concrete (second revision) BIS, New Delhi
7  IS: 1489PartI 1991  Specifications for portland pozzolana cement (PartI) Flyash based. (Third revision), BIS, New Delhi
8  Kishore Kaushal, “Design of Concrete Mixes with HighStrength Ordinary Portland Cement”. The Indian Concrete Journal, April, 1978, PP. 103104
9  Kishore Kaushal, “Concrete Mix Design”. A manual published for Structural Engineering Studies, Civil Engineering Department, University of Roorkee, 1986.
10  Kishore Kaushal, “Concrete Mix Design Based on Flexural Strength for AirEntrained Concrete”, Proceeding of 13^{th} Conference on our World in Concrete and Structures, 2526, August, 1988, Singapore.
11  Kishore Kaushal, “Concrete Mix Design”, Indian Concrete Institute Bulletin September, 1988, pp. 2740 and ICI Bulletin December, 1988, pp. 2131.
12  Kishore Kaushal, “Method of Concrete Mix Design Based on Flexural Strength”, Proceeding of the International Conference on Road and Road Transport Problems ICORT, 1215 December, 1988, New Delhi, pp. 296305.
13  Kishore Kaushal, “Mix Design Based on Flexural Strength of AirEntrained Concrete”. The Indian Concrete Journal, February, 1989, pp. 9397.
14  Kishore Kaushal, “Concrete Mix Design”, VIII All India Builders Convention 2931, January, 1989, Hyderabad, organized by Builders Association of India, Proceeding Volume pp. 213260.
15  Kishore Kaushal, “Concrete Mix Design Containing Chemical Admixtures”, Journal of the National Building Organization, April, 1990, pp. 112.
16  Kishore Kaushal, “Concrete Mix Design for Road Bridges”, INDIAN HIGHWAYS, Vol. 19, No. 11, November, 1991, pp. 3137
17  Kishore Kaushal, “A Concrete Design”, Indian Architect and Builder, August, 1991, pp. 5456
18  Kishore Kaushal, “ Mix Design for Pumped Concrete”, Journal of Central Board of Irrigation and Power, Vol. 49, No.2, April, 1992, pp. 8192
19  Kishore Kaushal, “Concrete Mix Design with Fly Ash”, Indian Construction, January, 1995, pp. 1617
20  Kishore Kaushal, “HighStrength Concrete”, Civil Engineering and Construction Review, March, 1995, pp. 5761.
21  Kishore Kaushal, “HighStrength Concrete”, Bulletin of Indian Concrete Institute No. 51, AprilJune, 1995, pp. 2931
22  Kishore Kaushal, “Mix Design of PolymerModified Mortars and Concrete”, New Building Materials & Construction, January, 1996, pp. 1923.
23  Kishore Kaushal, “Concrete Mix Design Simplified”, Indian Concrete Institute Bulletin No. 56, JulySeptember, 1996, pp. 2530.

24  Kishore Kaushal, “Concrete Mix Design”, A Manual Published by M/S Roffe Construction Chemicals Pvt. Ltd., Mumbai, pp. 136
25  Kishore Kaushal, “Concrete Mix Design with Fly Ash & Superplasticizer”, ICI Bulletin No. 59, AprilJune 1997, pp. 2930
26  Kishore Kaushal. “Mix Design for Pumped Concrete”, CE & CR October, 2006, pp. 4450.
Table. 1: Grading of Aggregates
IS Sieve Designation
Percentage Passing

Fine Aggregate
Crushed Aggregate

10 mm
20 mm

40 mm
—
—
100
20 mm
—
—
100
12.5 mm
—
100
—
10 mm
100
85
4
4.75 mm
99
5
0
2.36 mm
88
0

1.18 mm
74


600 Micron
43


300 Micron
24


150 Micron
6


Table. 2: Approximate freewater content (kg/m3) required to give various levels of workability for nonairentrained (with normal entrapped air) concrete.
Maximum size of aggregate (mm)  Type of aggregate  Slump (mm) Degree of workability
— vary low
2575 … Low
50100 … Medium
100180 … High
10
Uncrushed Crushed
150 180
205 235
220 250
240 265

20
Uncrushed Crushed
140 170
180 210
195 225
210 245

40
Uncrushed Crushed
120 155
160 190
175 205
190 220
Note: When coarse and fine aggregate of different types are used, the free water content is estimated by the expression.
Where, W_{f} = Free water content appropriate to type of fine
Aggregate And W_{c} = Free water content appropriate to type of coarse aggregate.
Table. 3: Proportion of fine aggregate (percent) with 10mm and 20mm maximum sizes of aggregates and with different workability
Grading
Zone of F.A
W/C Ratio
10 mm aggregate Workability
20 mm aggregate Workability

VL
L
M
H
VL
L
M
H

I
0.3
4353
4656
4960
5467
3239
3542
3947
4453
0.4
4656
4858
5162
5769
3442
3745
4149
4656

0.5
4858
5061
5365
5972
3745
3947
4352
4859

0.6
5061
5263
5668
6275
3947
4150
4554
5061

0.7
5264
5566
5870
6477
4150
4453
4757
5364

II
0.3
3643
3746
4049
4454
2732
2835
3239
3544
0.4
3746
3948
4251
4657
2834
3037
3341
3746

0.5
3948
4150
4453
4759
3037
3239
3543
3948

0.6
4150
4252
4556
4962
3239
3441
3645
4150

0.7
4252
4455
4758
5164
3441
3644
3847
4353

III
0.3
2936
3237
3340
3744
2327
2428
2732
3035
0.4
3137
3339
3542
3846
2428
2630
2833
3137

0.5
3239
3441
3644
4047
2530
2732
2935
3339

0.6
3441
3642
3845
4249
2732
2934
3136
3541

0.7
3542
3744
3947
4351
2834
3036
3238
3643

IV
0.3
2629
2732
2933
3237
1923
2124
2327
2630
0.4
2731
2933
3035
3438
2124
2226
2428
2831

0.5
2832
3034
3236
3540
2225
2427
2629
2933

0.6
3034
3136
3338
3642
2327
2529
2731
3035

0.7
3135
3237
3539
3743
2528
2630
2832
3236
Table. 4: Proportion of fine aggregate (percent) with 40 mm maximum sizes of Aggregates and with different workability.
Grading Zone of F.A
W/C Ratio
40 mm aggregate Workability

VL
L
M
H

I
0.3
2733
2935
3339
3846
0.4
2935
3138
3542
4149

0.5
3138
3341
3744
4352

0.6
3341
3643
3947
4554

0.7
3644
3846
4250
4757

II
0.3
2227
2329
2733
3128
0.4
2429
2531
2835
3241

0.5
2531
2733
3037
3443

0.6
2733
2936
3239
3645

0.7
2936
3138
3442
3847

III
0.3
1822
2023
2227
2631
0.4
2024
2125
2428
2732

0.5
2125
2327
2530
2934

0.6
2327
2429
2732
3036

0.7
2429
2631
2934
3236

IV
0.3
1618
1820
1922
2226
0.4
1720
1921
2024
2427

0.5
1821
2023
2225
2529

0.6
2023
2224
2327
2630

0.7
2124
2326
2529
2832
V_{L} = Very low workability.
L = Low workability – slump 2575 mm
M = medium workability – slump 50100 mm
H = High workability slump 100180 mm
We are thankful to Sir Kaushal Kishore for publishing his unpublished research paper here on the website. This would be of great use to all the civil engineers who work are looking for some cost effective measures.
Please save a soul… i need materials on high performance concrete and the effect of starch on concrete. thanks for your timely help.
Excellent article and great insight on effective usage of waterreducers in concrete
Dear civil,
I am a Quality control engineer,i Dont know design mix fully,so I want concrete mix design training.where i can get this training.please give me in this details.
Thanking you,
T.subburaj
Please work out CONCRETE MIX DESIGN from this paper. You will find it is simple and
you can do it yourself.
KAUSHAL KISHORE
dear sir please send m20 & m25 conc. mix design for my running project ……….
A Mix design may be given on getting full information of your project requirements.
such as,type and grading of aggregates,its specific gravity SSD basis and water absorption,bulk density on
room dry basis, cement brand,type and grade, workabily required, concrete will be placed
by manual or pumped concrete, details of admixtures if any are being proposed to be used etc.
DESIGN OF MIXA WITH PPC
2/3*180+1/3*210= 190 kg/mm3
can u explain the step for find the water content
The details of table.2 are missing in this print. It should be read as given below:
2/3 Wf + 1/3 Wc. The Civil Engg Portal should correct it. How this is missing in this print.
How to estimate the water required for curing of various concrete elements. Are there any norms available for estimation.
