Gallery-Construction Site

Ferrocement Dams

In Pune District Ferrocement Society(NGO) has encouraged Prof Ambegaonkar to build a samll dam in ferrocement. This dam is useful to recharge the ground water.

Ferrocement Dams

We are thankful to Mr Girish Sangle for submitting this picture to us.

Advertisements

Laying of Bituminous Concrete

Laying of Road top layer with Bituminous Concrete (BC) using Ingersoll Rand Paver machine

We at engineeringcivil.com thank Er.Dipayan Acharjee for submitting this picture to us.

Laying of Bituminous Concrete

Advertisements

Fort Lauderdale-Hollywood International Airport: Construction of South Runway Project—Aerial View of the Retaining Wall

The South Runway Expansion Project continues to progress at Fort Lauderdale-Hollywood International Airport (FLL). In 2012, FLL served 23.5 million passengers. The Project is extending the South Runway (9R/27L) from 5,276 feet to 8,000 feet, giving the Airport two parallel commercial runways. Parallel runways can increase airport capacity dramatically. When completed, the expanded South Runway will accommodate up to 27 percent more flights into and out of FLL. That’s a potential increase from 84 to 107 flights per hour. Motorists, trains and pedestrians will pass under the new Runway through a series of tunnels.The South Runway Expansion Project is expected to create over 11,000 jobs during construction. The Project is currently contributing more than one million dollars each day to the local economy. The new South Runway is scheduled to open in September of 2014. Additionally, the airport has commenced wetland restoration/mitigation activity at West Lake Park, in Hollywood, Florida, and recently completed the pilot phase of a $170 million noise mitigation program. Beyond the direct economic impact, there are countless additional economic benefits that will be derived by the on-going activity during the construction period. The project is funded by the Federal Aviation Administration, the Florida Department of Transportation, and Passenger Facility Charges. FLL operates under the governance of the Broward County Board of County Commissioners and is an Enterprise Fund of Broward County, receiving no local tax revenues to support operations.

Advertisements

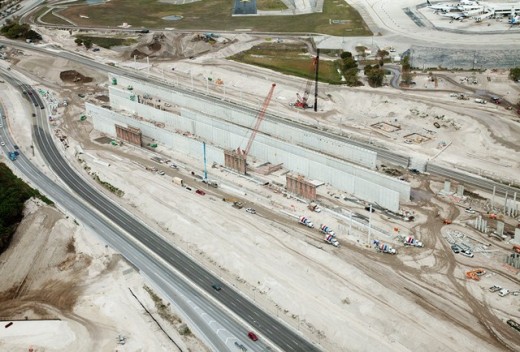

Aerial View of the Structures for the South Runway

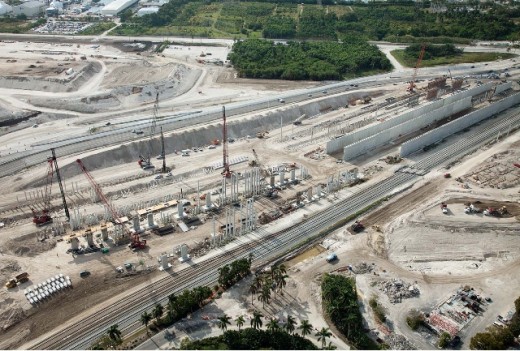

Aerial View of the Structures for the South Runway2

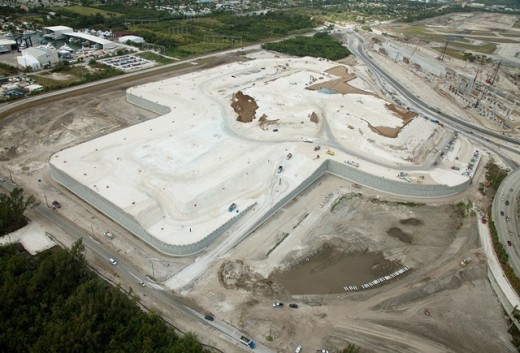

Aerial View of the Retaining Wall
Aerial View of the Retaining Wall

Aerial View of the Structures for the South Runway
Aerial View of the Structures for the South Runway

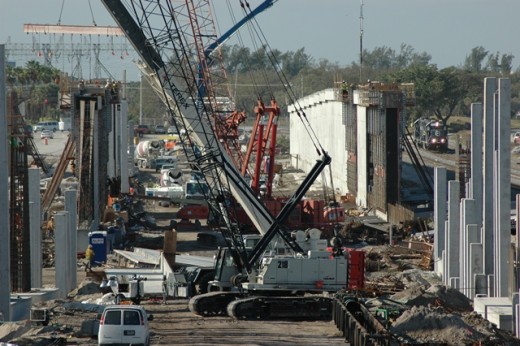

Runway Structures Construction
Runway Structures Construction

Cross Bars at Column

In case of large water-table exact below the structure we should provide Cross bars in slab at columns as shown in picture to reduce bending due to the Uplift pressure of Water.

Advertisements

We are thankful to Darshan Vekariya for submitting this picture to us and helping civil engineers understand the cross bars reinforcement at columns.

Cross bars at column

Signature Bridge Project Delhi India

The cable stayed bridge connects to National Highway 1 near existing T-point at Wazirabad on Western bank and Marginal Bund Road at Khajuri Khas on eastern bank of the river Yamuna. The deck of bridge will be composite i.e steel and concrete while pylon will be in steel.

Advertisements

The bridge is expected to be completed in Dec 2012 and will cost around Rs 1,131 crore.

Right Carriage Way Opened for Traffic..
Signature Bridge Project Delhi India

Signature Bridge Project

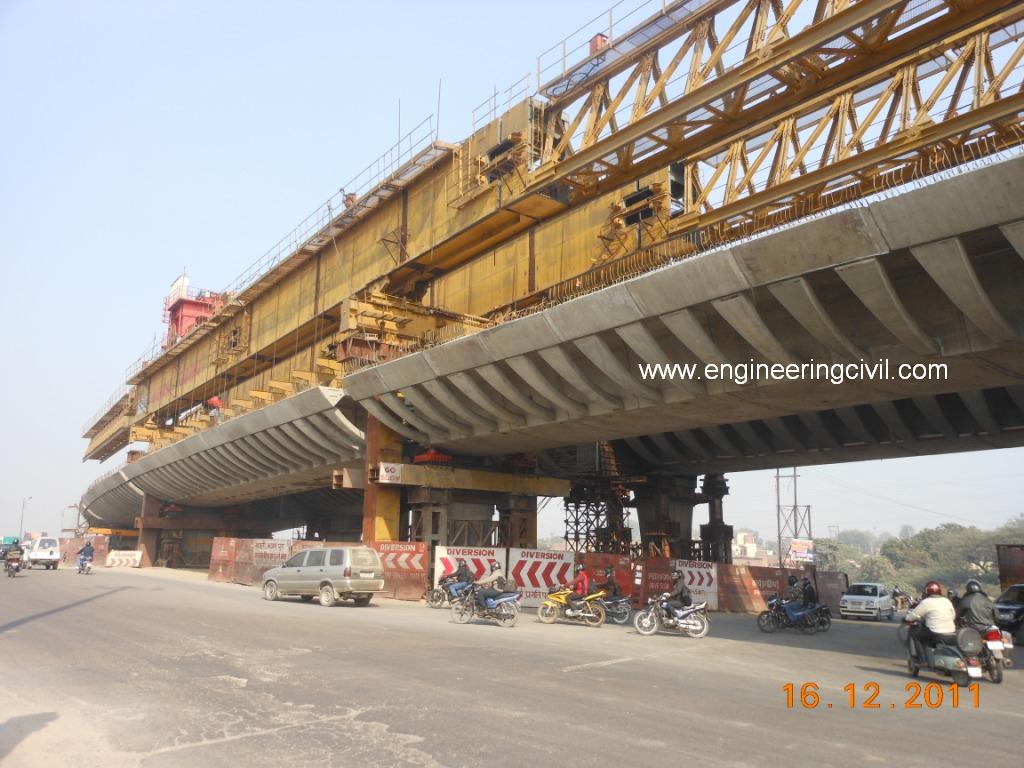

Following picture shows the Launching Girder for Launching of Segments at a construction site. We are thankful to Shailendra Aryan for submitting this picture to us.

Advertisements

Click on the picture to see the actual sized picture.

Signature Bridge Project

Load Test

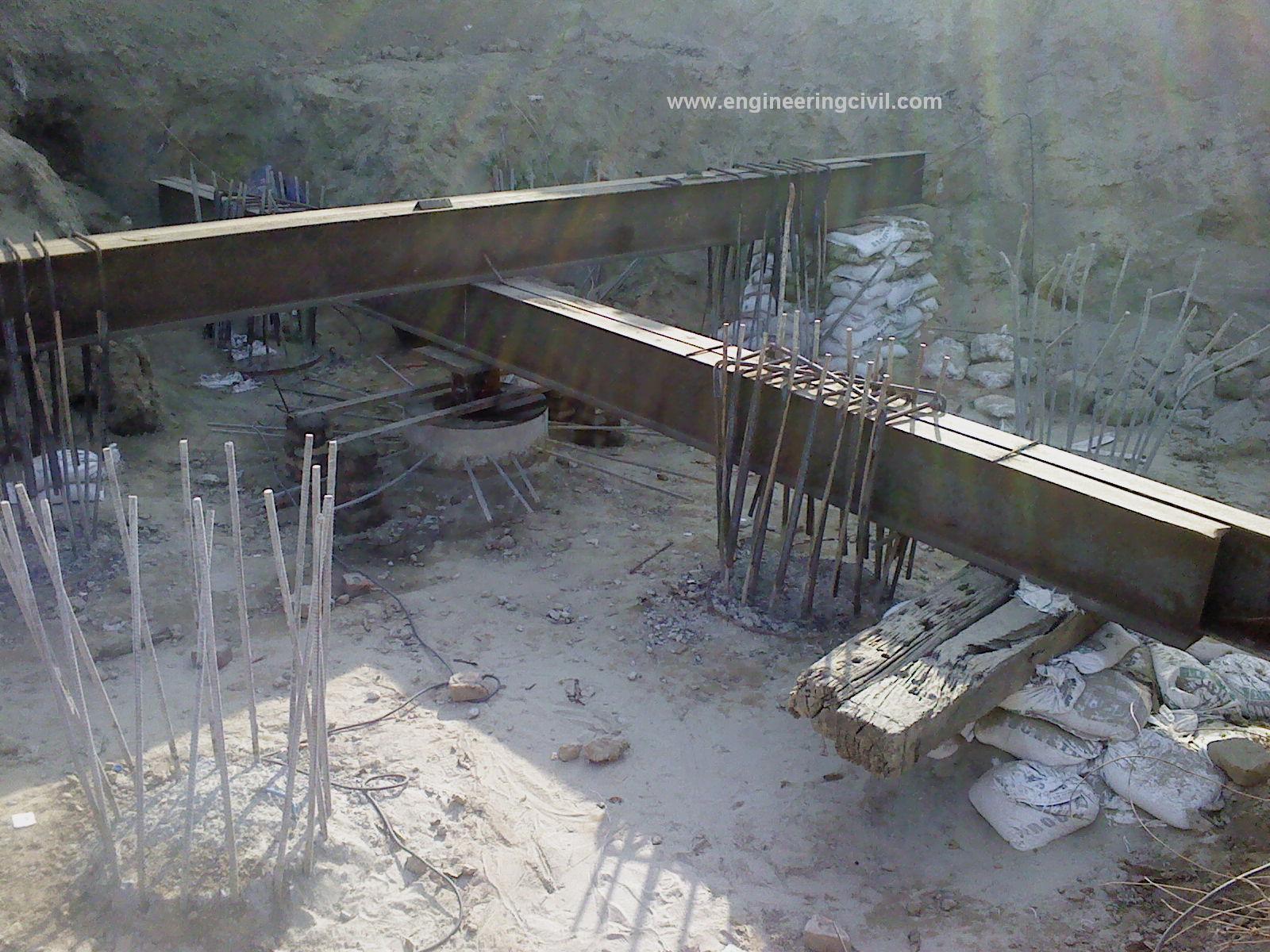

Following picture shows the Setup made for testing of load carrying capacity of a pile at a construction site. We are thankful to Zaryab Khan for submitting this picture to us.

Advertisements

This will surely help other civil engineering students understand how to test load bearing capacity of pile.

Click on the picture to see the actual sized picture.

testing of load carrying capacity of a pile

load-test

Ring Mesh

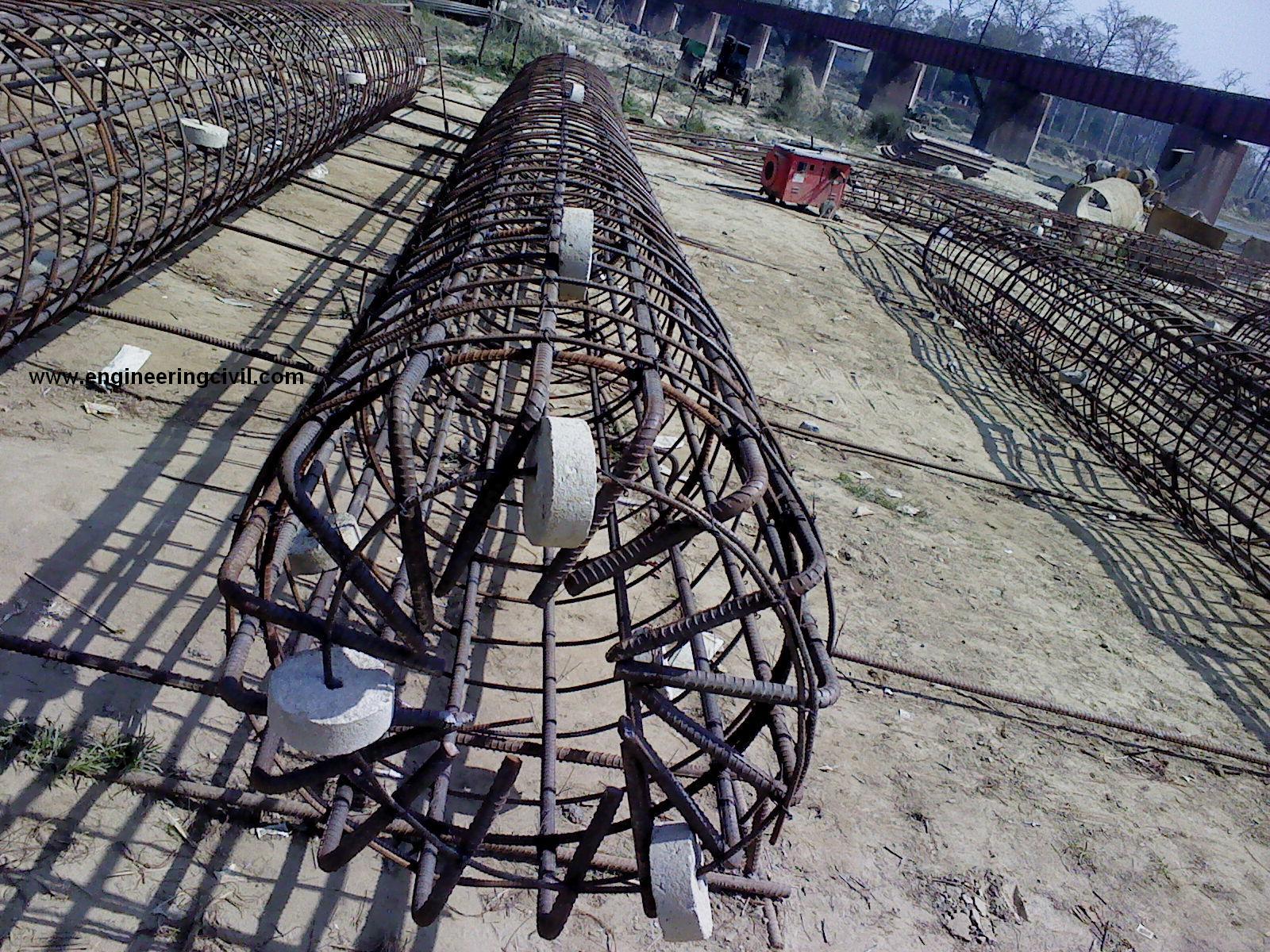

Following picture shows the Ring Mesh at a construction site. We are thankful to Zaryab Khan for submitting this picture to us. 1st ring of depth 14 m to be inserted in the pile foundation of depth 32 m .
This will surely help other civil engineering students in understanding more about the ring mesh

Advertisements

Click on the picture to see the actual sized picture.

ring mesh-pile

Pile Cap Mesh

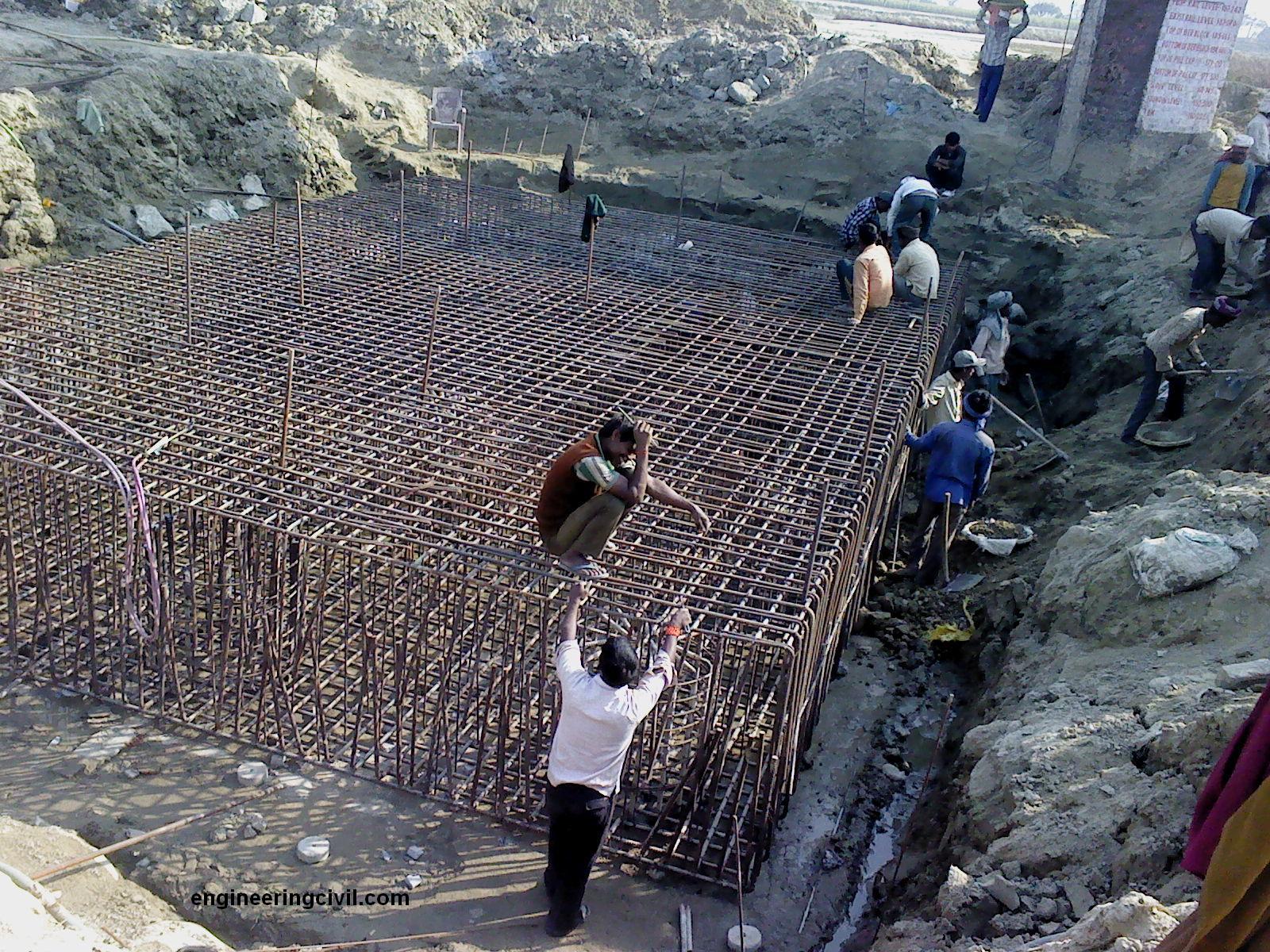

Following picture shows the Pile Cap Mesh at a construction site. We are thankful to Zaryab Khan for submitting this picture to us. This will surely help other civil engineering students.

Advertisements

Click on the picture to see the actual sized picture.

pile cap mesh

Ring Mesh

Follwing picture shows the Ring Mesh at a construction site. We are thankful to Zaryab Khan for submitting this picture to us. This will surely help other civil engineering students.

Advertisements

Click on the picture to see the actual sized picture.

ring mesh
